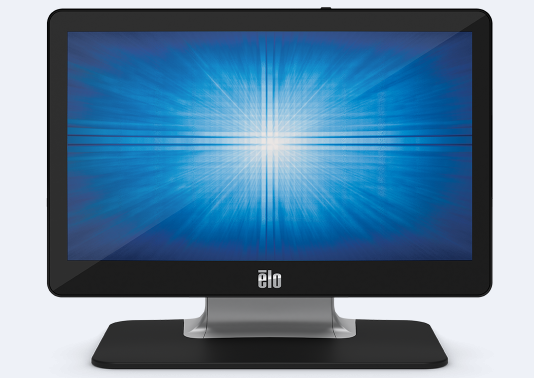

elo 1302L 宽屏触摸显示器

Specifications

• ---

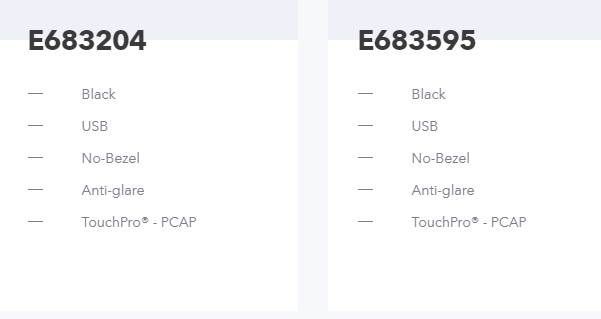

  Part Number(s)

  Black With Stand (Worldwide) - E683204
  Black Without Stand (Worldwide) - E683595
  White With Stand (Worldwide) - E683396
  White Without Stand (Worldwide) - E683787

  Enclosure Color

  White or Black

  Touch Technology & Capacity

  PCAP (Projected Capacitive) - 10 Touch

  Diagonal Size

  13.3'' diagonal, Active matrix TFT LCD

  Aspect Ratio

  16:9

  Active Area (mm)

  11.57" x 6.51" / 293.76 mm x 165.24 mm

  Resolution

  1920 x 1080

  Other Supported Resolutions

  640 x 480 60Hz
  800 x 600 60Hz
  1024 x 768 60Hz
  1280 x 720 60Hz
  1280 x 800 60Hz, 60Hz RB
  1280 x 960 60Hz
  1280 x 1024 60Hz
  1360 x 768 60Hz
  1366 x 768 60Hz, 60Hz RB
  1440 x 900 60Hz, 60Hz RB
  1680 x 1050 60Hz, 60Hz RB
  1920 x 1080 60Hz

  Viewing Angle

  Horizontal: ±85° or 170° total / Vertical: ±85° or 170° total

  Number of Colors

  16.7 million

  Brightness (typical)

  Panel: 300 nits; TouchPro PCAP: 270 nits

  Response Time-total (typical)

  25 msec

  Contrast Ratio

  800:1

  Touch Interfaces

  USB

  Surface Treatment

  Anti-glare

  On Screen Display

  Accessible through switches along the bottom:

  Controls: Menu, Up, Down, Select, Power

  Settings: Brightness, Contrast, Clock, Phase, H-Position, V-Position, Auto-Adjust, Aspect Ratio, Sharpness, Color Temperature, OSD Timeout, OSD Language, Recall Defaults, Video Priority, Information, Touch on Sleep Mode, Energy Saver, Panel Saver, Mute, Volume, Audio Source

  Languages: English, French, Italian, German, Spanish, Simplified Chinese, Traditional Chinese, Japanese,

  Lockouts: OSD, Power

  I/O Ports

  1 x Full-function USB-C (Requires PD [Power Delivery], USB 3.0 and Display Port)
  1 x Audio jack (Line-in)
  1 x VGA
  1 x HDMI
  1 x 12V D/C input
  4x Micro-USB ports (Top, Bottom, Left, Right) for Elo Edge Connect peripherals

  Speakers

  2 x 1W

  Video

  HDMI V1.3 Type A receptacle for HDMI input
  Analog VGA
  USB Type-C

  Input Video Frequency

  Horizontal: 30 – 75K KHz
  Vertical: 60Hz

  Power

  Option 1 - USB Type-C Input voltage range: 15V 1.8A / 20V 1.35A

  Option 2 - External DC Adapter 12V/36W in box

  Monitor input power connector: Coaxial power jack (2.0mm (+0.0 -0.1mm) pin outer diameter, 6.4mm (+/- 0.3mm) barrel inner diameter, 8.8mm (+/- 0.3mm) Barrel depth)

  Monitor input voltage range: 12VDC +/- 5%

  Adapter output power connector: DC barrel plug (2.1mm (+/- 0.1mm) pin inner diameter, 5.5mm (+/- 0.05mm) barrel outer diameter, 9.5mm (+/- 0.3mm) Barrel length)

  Adapter input voltage range: 100-240 VAC
  Input frequency: 50-60 Hz

  Power Consumption (Typical)

  Monitor + adapter
  ON: 9.8W
  SLEEP: 1.39W
  OFF: 0.18W


  Monitor Dimensions (without Stand)

  8.32" x 12.84" x 0.99" / 211.30 mm x 326.06 mm x 25.05 mm

  Monitor Dimensions (with Stand)

  10.22" x 12.84" x 5.91" / 259.57 mm x 326.06 mm x 150 mm

  Shipping Box Dimensions

  Without Stand: 11.02" x 15.95" x 6.30" / 280 mm x 405 mm x 160 mm
  With Stand: 13.11" x 16.34" x 8.66" / 333 mm x 415 mm x 220 mm

  Weight (Unpackaged)

  Without Stand: 2.69 lbs / 1.22 kg
  With Stand: 5.11 lbs / 2.32 kg

  Weight (Packaged)

  Without Stand: 6.37 lbs / 2.89 kg
  With Stand: 10.19 lbs / 4.62 kg

  Operating Temperature

  0°C to 40°C / 32°F to 104°F

  Storage Temperature

  -20°C to 60°C / -4°F to 140°F

  Humidity

  Operating: 20% to 80%; Storage: 10% to 95% (38.7 ℃ max wet bulb temperature)

  Mounting Options

  VESA 75mm x 75mm (4-hole)

  Warranty

  3-year

  Extended Warranty Options

  4 year warranty coverage - Elo P/N: E898247
  5 year warranty coverage - Elo P/N: E898449
  3 year warranty coverage + AUR - Elo P/N: E898648
  4 year warranty coverage + AUR - Elo P/N: E894921
  5 year warranty coverage + AUR - Elo P/N: E895125

  Regulatory approvals and declarations

  Australia RCM
  Canada cUL, IC
  China CCC
  Europe CE
  Japan VCCI
  Korea KCC
  Mexico NOM
  Taiwan BSMI
  United States UL, FCC
  International CB
  RoHS, China RoHS, WEEE, REACH

  Ingress Protection

  IPX1 for front side

  What's in the Box

  Touchmonitor
  HDMI cable
  Touch USB Cable (USB Type-A to Type-C)
  Quick Install Guide
  EEI Label
  Power brick
  NA Power cable
  EU Power cable
  3x Tie wraps
  2x screws for cable cover(s)

  Optional PCAP Stylus Pen

  E066148

  Optional Peripherals

  Magnetic Stripe Reader (MSR) – Elo P/N: E001002
  Elo Backpack® - Elo P/N: E611864
  Barcode Reader (BCR) – Elo P/N: E093433
  Customer Display (2x20 VFD) – Elo P/N: E001003
  2D Barcode Scanner – Elo P/N: E926356
  EMV Cradle for Ingenico ICMP (I-Series & 02-Series Monitors) - Elo P/N: E200465
  EMV Cradle for Verifone E355 (I-Series & 02-Series Monitors) - Elo P/N: E201088
